Configuring NMEA Messages to be Sent Over Ethernet

Below you can find the list of commands to configure NMEA messages to be sent via Ethernet from your OxTS device!

The commands to output NMEA over ethernet are:
-udp2_address[xx]:[yy]
-udp2_nmearmx_1.000
-udp2_nmeamode_standard

Where [xx] is the i.p and [yy] is the port and -udp2_nmearmx_1.000 will be the specific message at a certain rate.

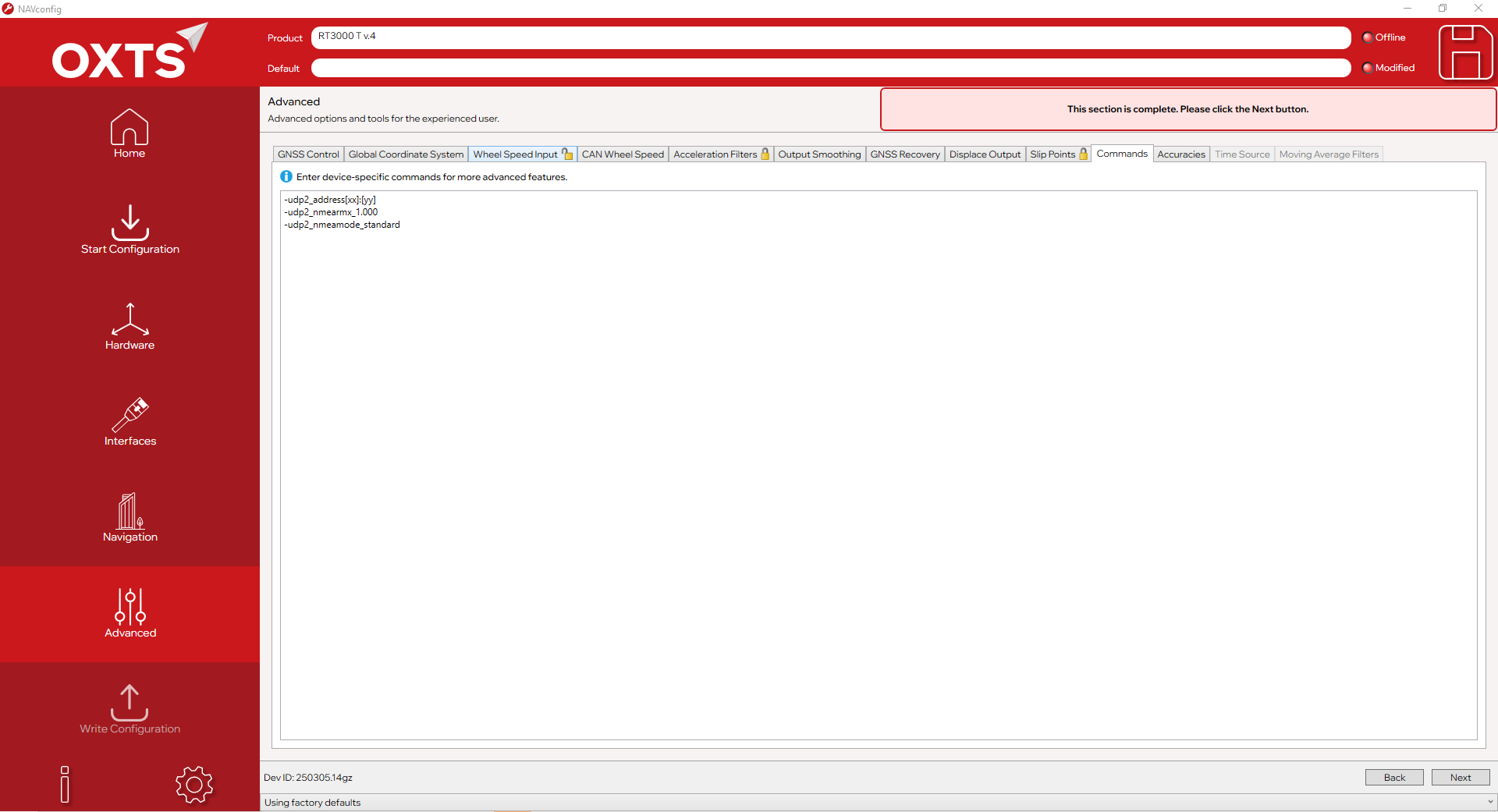

To configure these commands to an OxTS unit, you will need to navigate NAVconfig to the Advanced Commands section of the "Advanced" tab as shown in the image. Once you are there, you can copy the commands as shown above into the prompted area of the screen. Note that xx and yy should be custom values entered by the user and not left as they are above.

Hopefully this helps, and if you have any questions, please feel free to reach out to Support@oxts.com for further assistance!
